What is VoIPmonitor
VoIPmonitor is open source live network packet sniffer voip monitoring software and call recorder for linux or posix unix which analyzes SIP and RTP protocol. It can run as daemon or analyzes already captured pcap files. For each detected VoIP call voipmonitor calculates statistics about loss, burstiness, latency and predicts MOS (Meaning Opinion Score) according to ITU-T G.107 E-model so operator centers can quickly decide which calls are bad. These statistics are saved to MySQL database and each call is saved as pcap dump and optionaly to audio WAV. Free VoIPmonitor can decode only G.711 codec. Commercial version can decode from G.729/G.723/GSM/Speex/iLBC. One of unique feature of VoIPmonitor is decoding phone calls which are changing codecs during call. Synchronisation is achieved with jitterbuffer simulator so every single file is properly synchronised. Web PHP application (it is not part of open source sniffer) filters data from database and graphs latency and loss distribution. Voipmonitor also detects improperly terminated calls when BYE or OK was not seen. To accuratly transform latency to loss packets, voipmonitor simulates fixed and adaptive jitterbuffer.
From customer: "I just wanted to write to say that Voipmonitor has been a HUGE help to us in managing our VOIP service in the face of South Africa's poor quality Internet environment. Aggregating the summary data provides fantastic information showing quality trends for individual customers, classes of customers and overall. The "clean" PCAP files are a huge help for debugging. What a pleasure to be able to go back in time and pull out a call from days ago and look at it packet by packet. So thanks so much for this very useful program!"Key features
- Predicts MOS-LQE score according to ITU-T G.107 E-model
- Records WAV files from G.711, for other codecs contacts support@voipmonitor.org
- Fast C++ SIP/RTP packet analyzer
- Detailed delay/loss statistics stored to MySQL
- Each call is saved as standalone pcap file
- Commercial web gui with nice loss/latency distribution

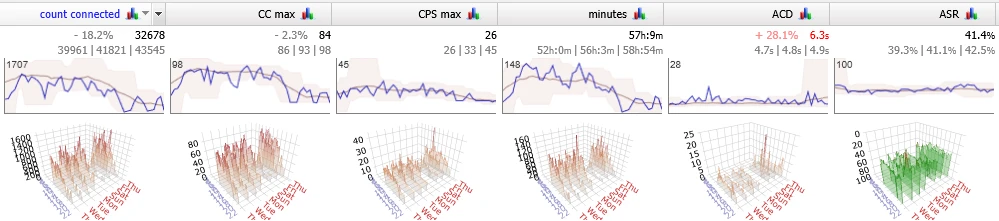

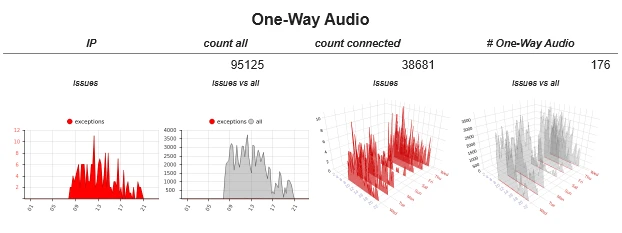

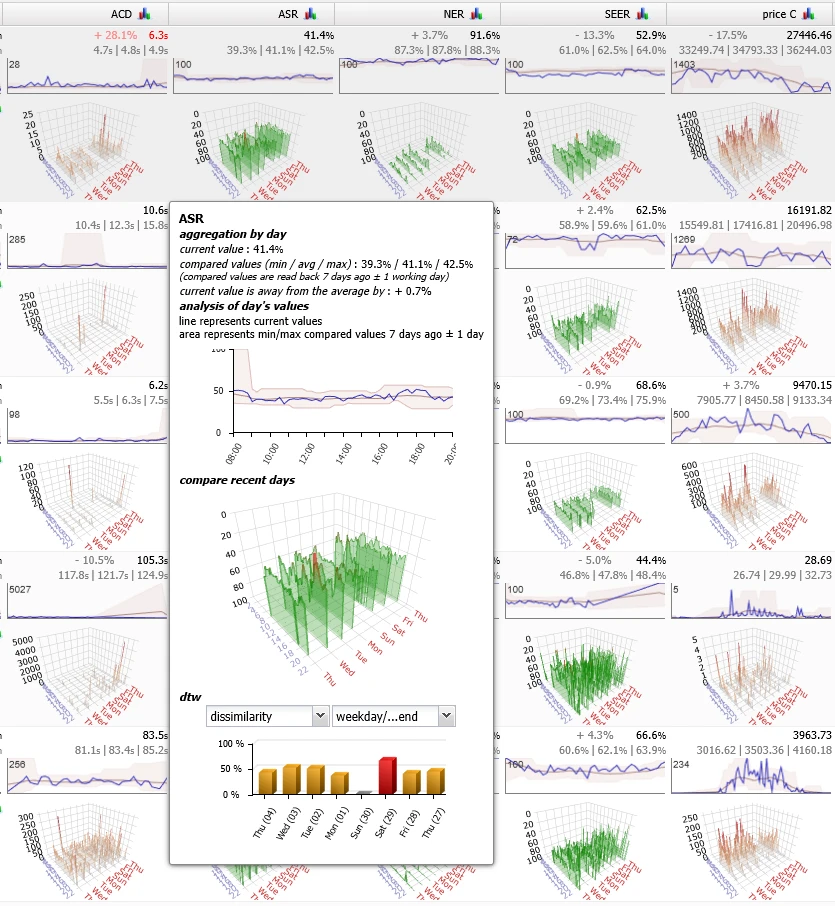

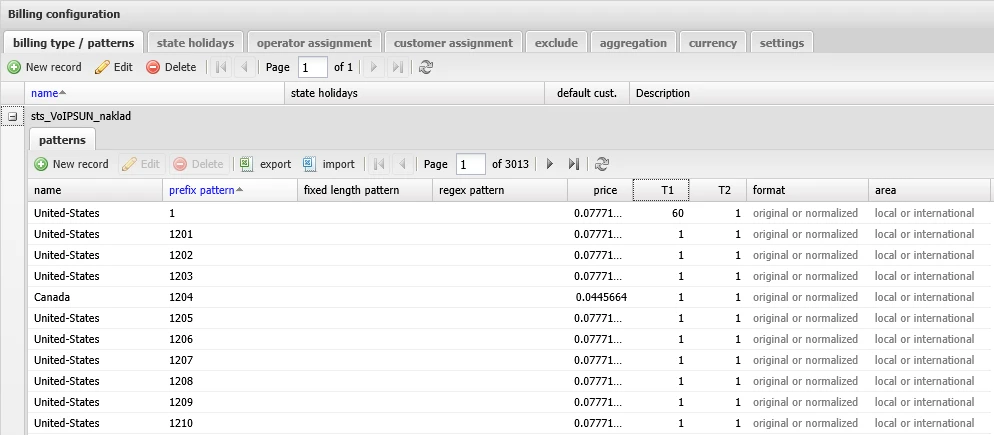

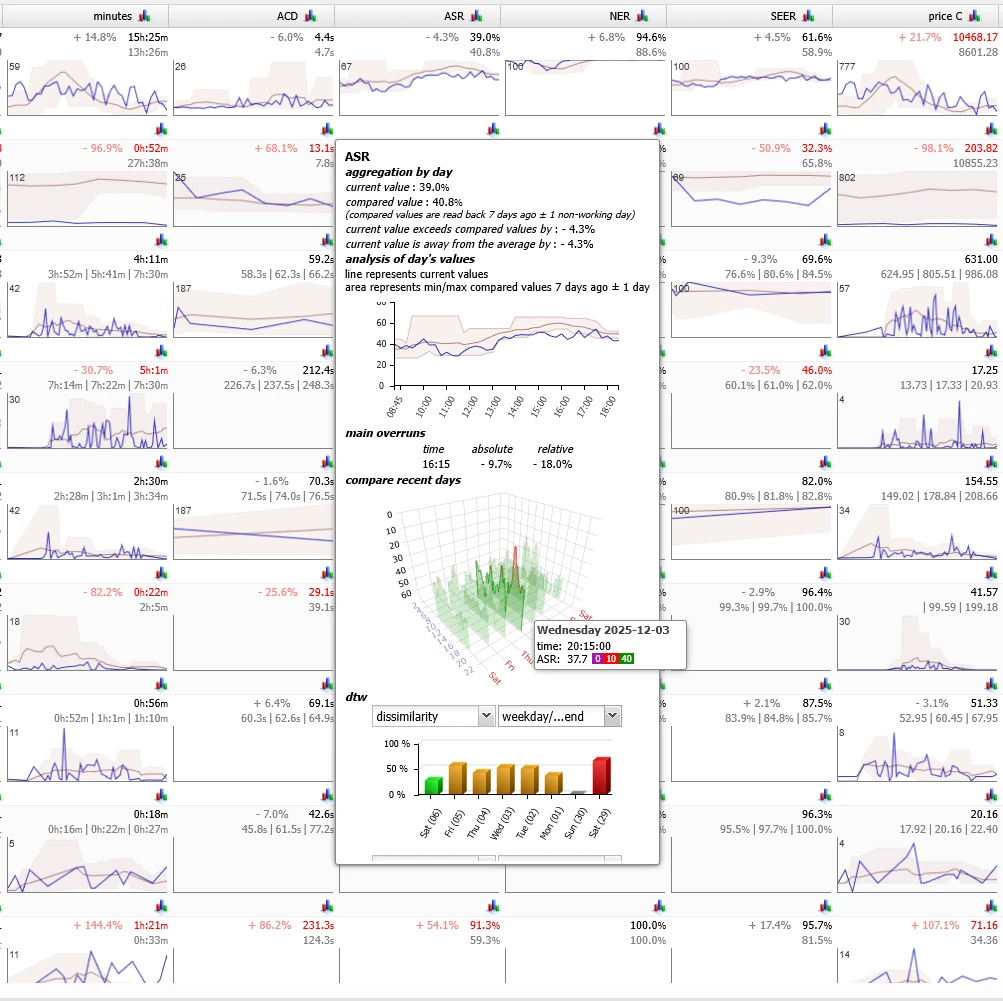

Web GUI

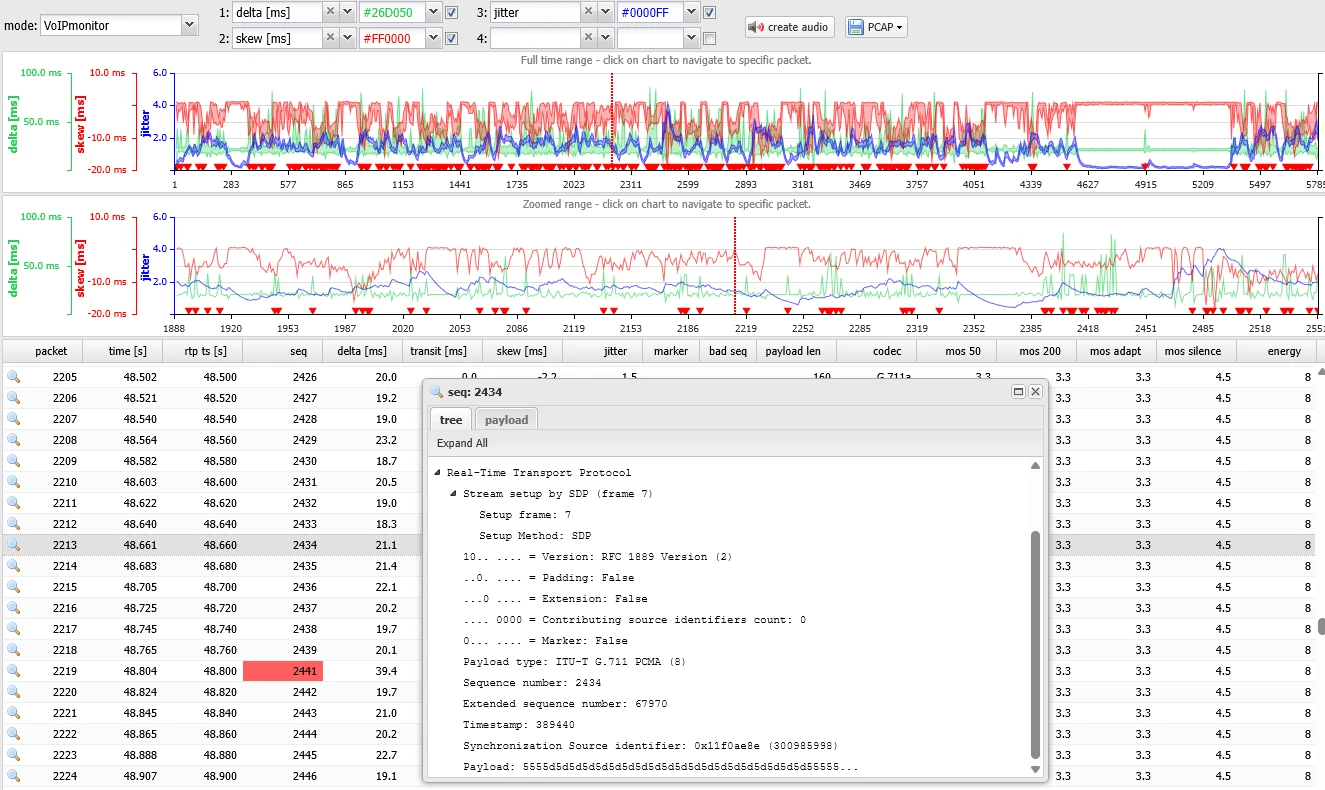

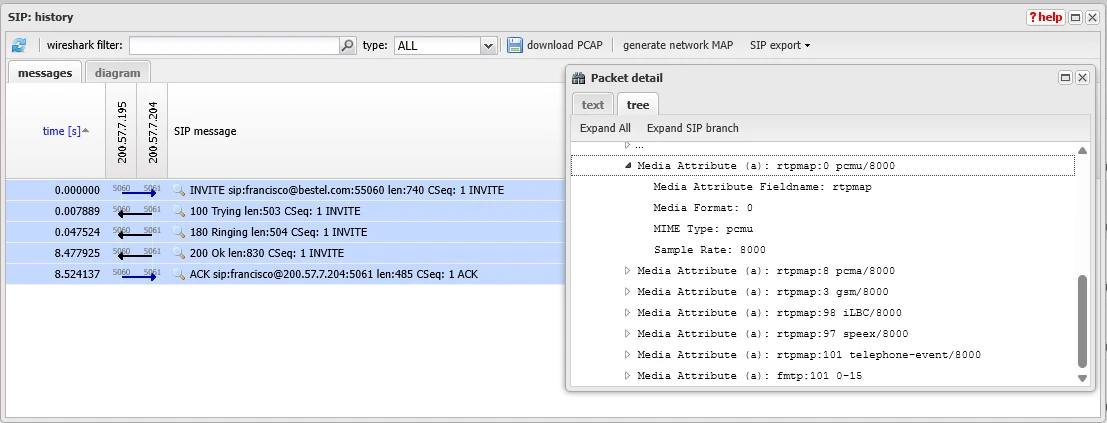

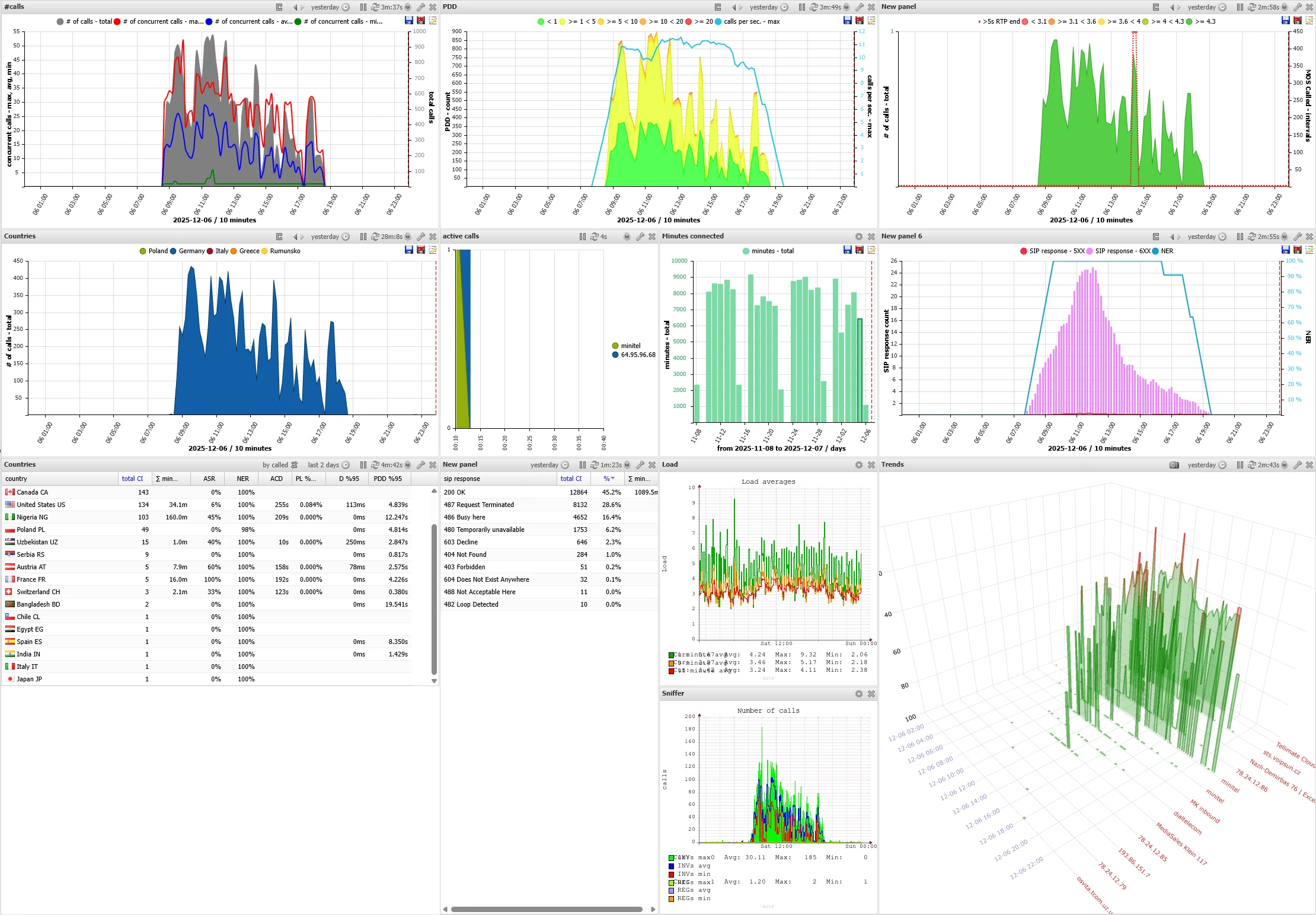

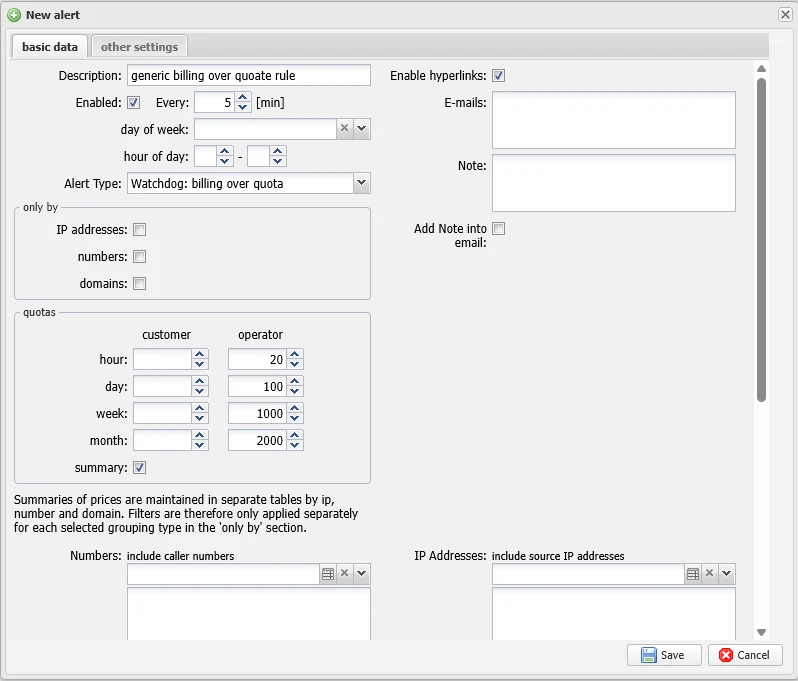

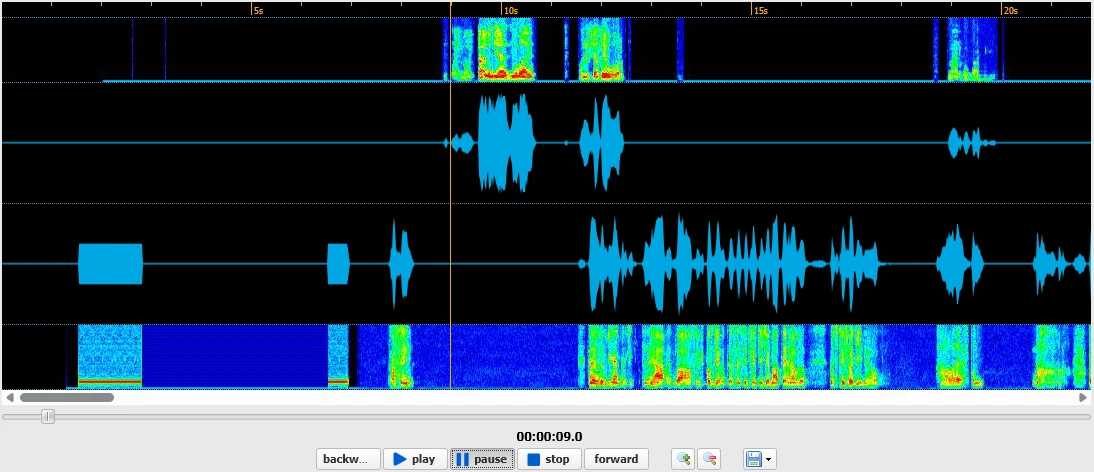

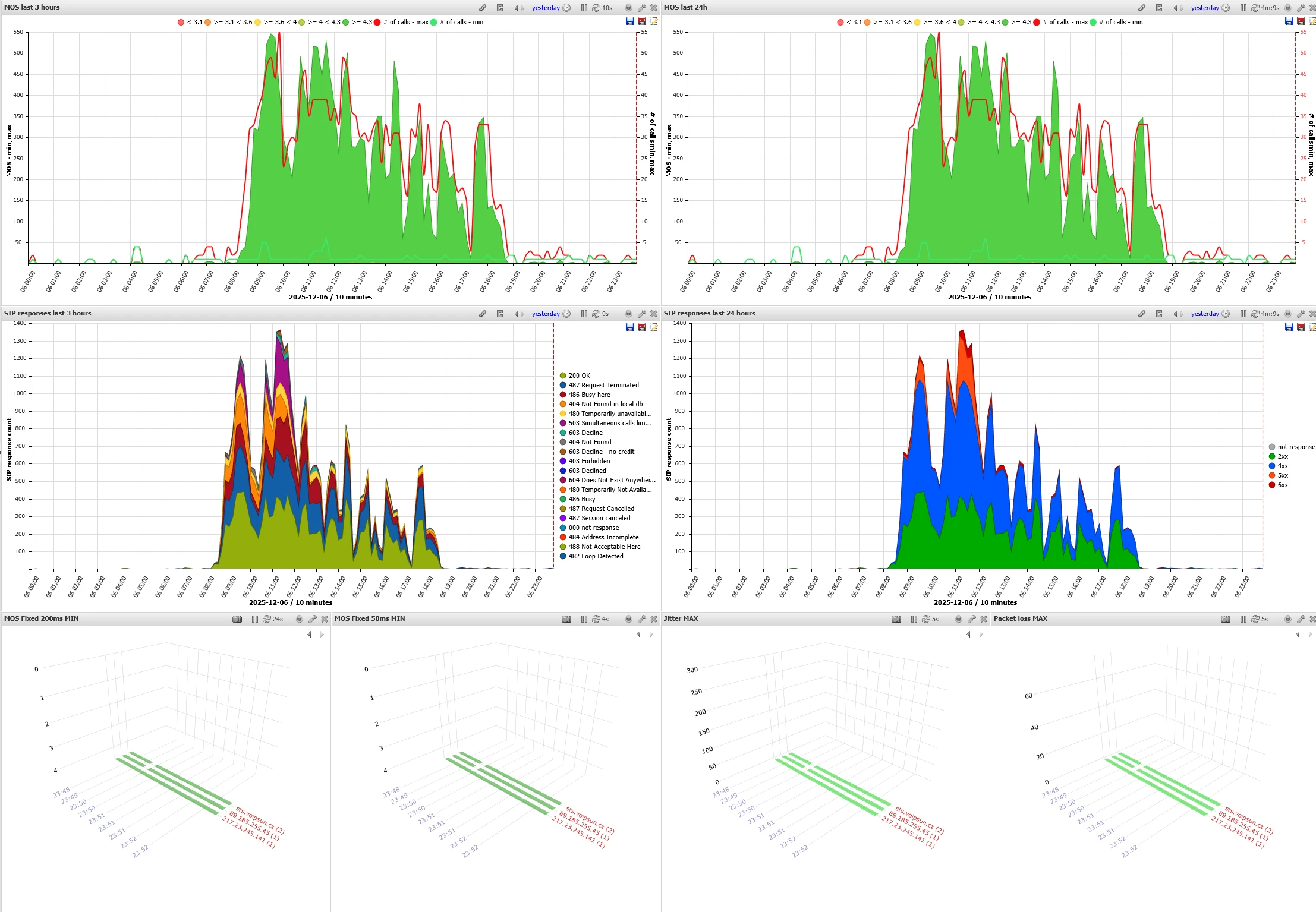

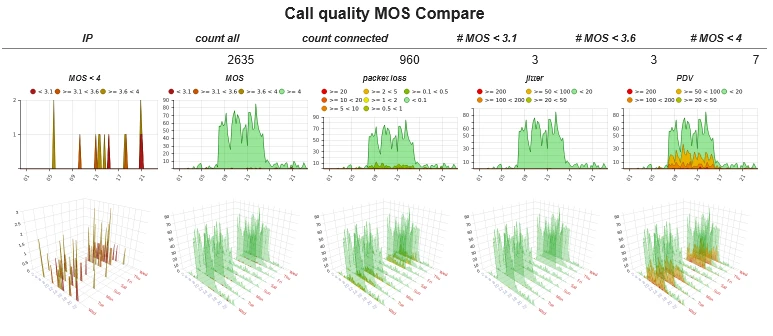

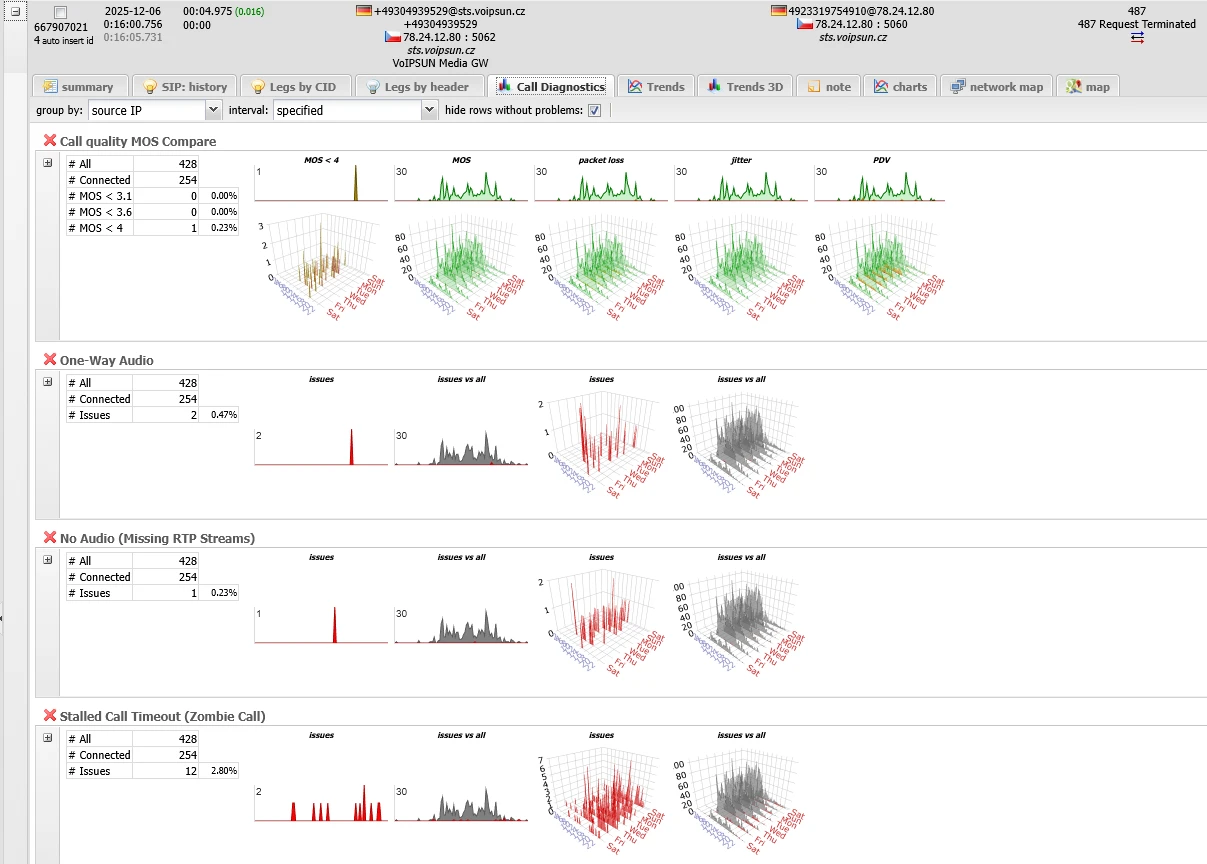

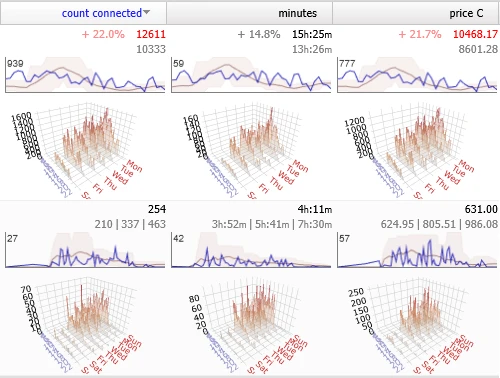

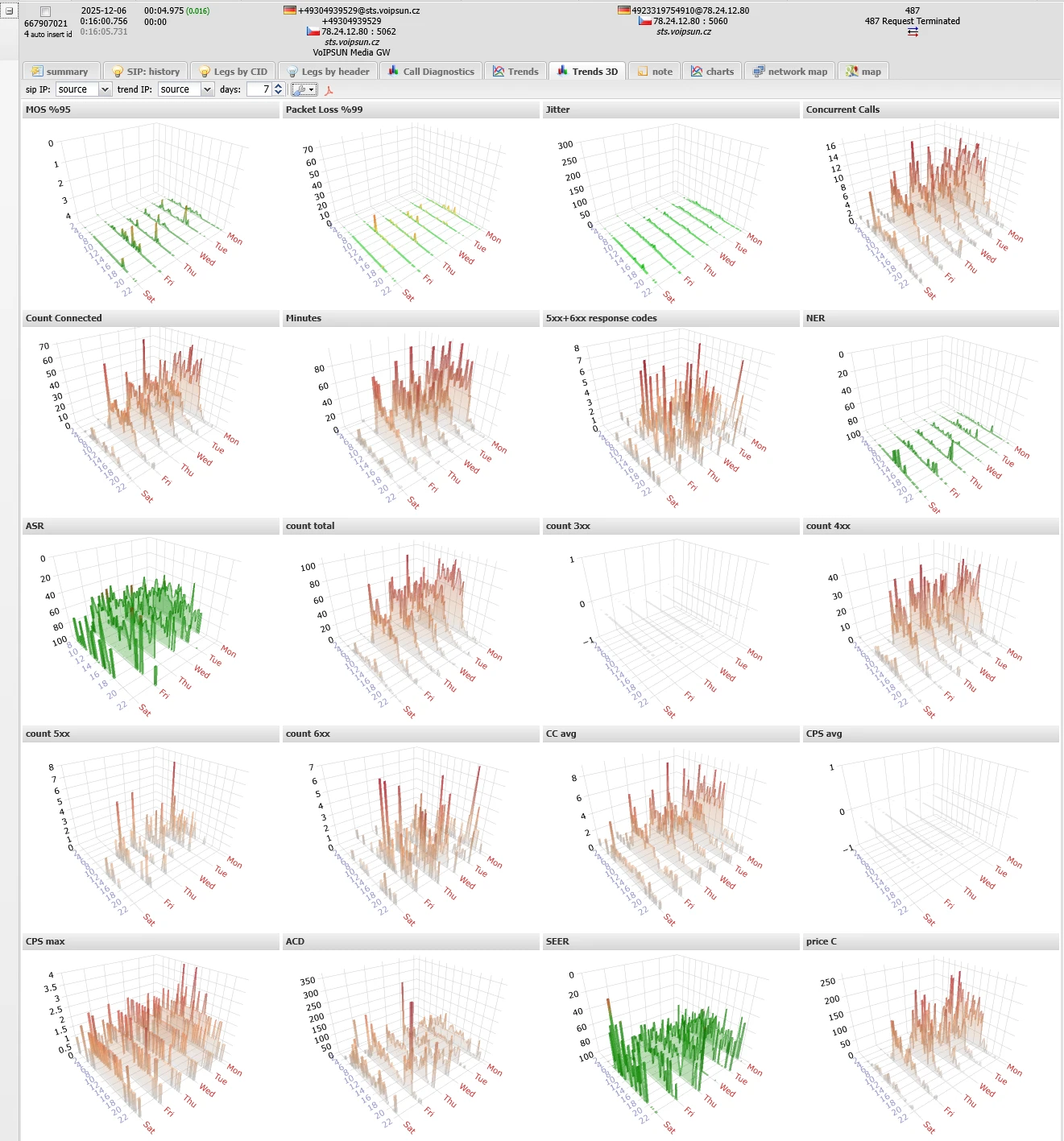

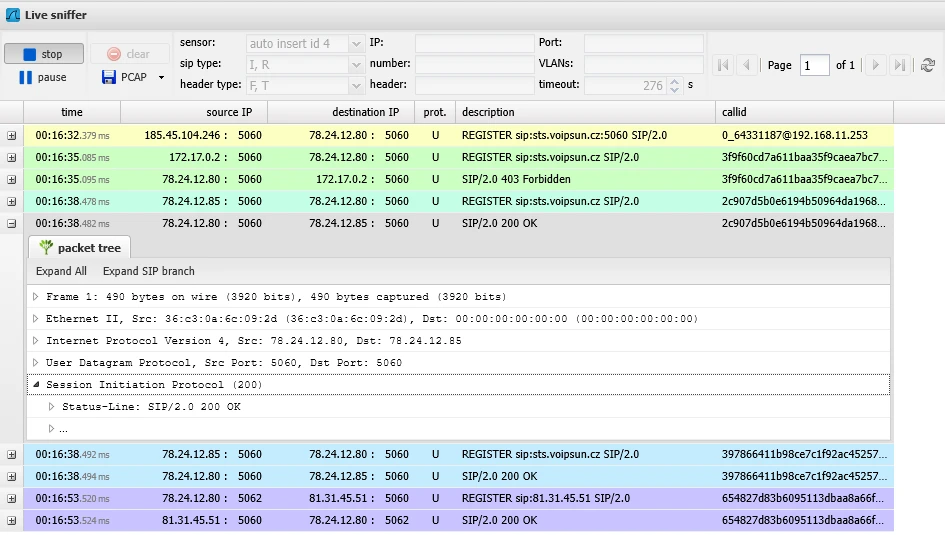

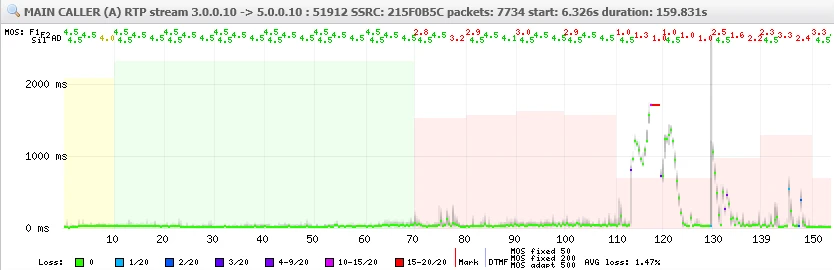

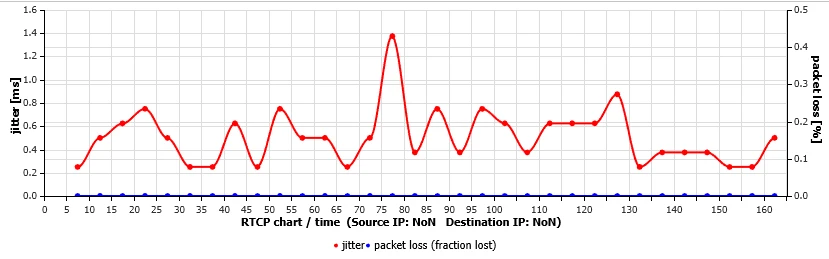

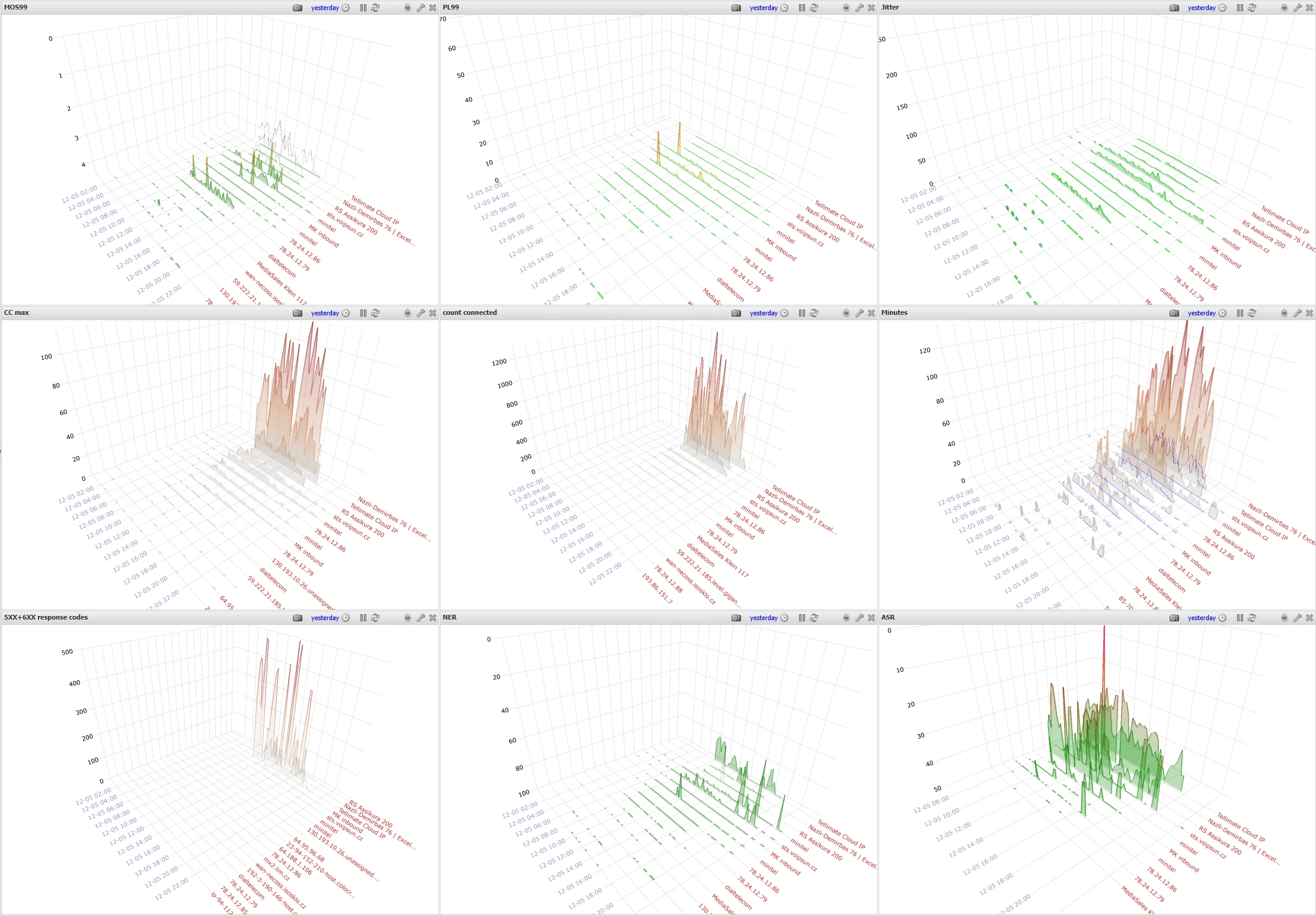

Web GUI is commercial application and is not part of free sniffer. This application filters calls based on various criteria. Part of GUI is grapher which shows delay and loss distribution over the whole call. You can also listen to recorded calls through embedded flash player. In detailed overview of call you can see all SIP packets and SIP headers like wireshark does. See online demo: http://voipmonitor.org/demo/. For inquiry please contact support@voipmonitor.org More information on commercial support page.
CODECS plugins
CODECS plugin adds ability to convert G.729 G.723 GSM iLBC Speex calls to WAV. Free version of voipmonitor converts only G.711. For pricing please contact support@voipmonitor.orgDownload
VoIPmonitor 3.0.1.tar.gz released 21.6.2011
VoIPmonitor 3.0.1 static binary
changelog
Changes from 2.2 to 3.0.1:New features:
- implement --ring-buffer and set it in MB (feature of newer >= 2.6.31 kernels).If you see voipmonitor dropping packets in syslog upgrade to newer kernel and increase --ring-buffer to higher MB. It is buffer between pcap library and voipmonitor. The most reason why voipmonitor drops packets is waiting for I/O operations (switching to ext4 from ext3 also helps.
- Implement configuration file. See config/voipmonitor.org. Config is read only if --config-file /etc/voipmonitor.conf specified on command line
- Implement generic init script. See config/init.d/voipmonitor (thanks Telephonic http://telephonic.ca for sponsoring this work)
- do not allocate 30 RTP classes for each call, allocate it only whan needed. It saves RAM and CPU.
- Implement new cdr.whohanged column which represents who hanged up or canceled call.
- Implement lastSIPresponse and lastSIPresponseNum (cat cdrtable.sql.2.3-2.4 |mysql voipmonitor) you can now filter calls by bad response - example SELECT * FROM cdr WHERE lastSIPresponseNum >= 400 (403 Wrong password or domain)
- support compact headers according to rfc3261.txt section 20. Compact headers means that Call-ID: is replaced by i:. This resulted that voipmonitor ignored all calls with compact headers on.
- add --rtp-oneleg option which is important option if voipmonitor is sniffing on SIP proxy and see both RTP leg of CALL. in that case use this option. It will analyze RTP only for the first LEG and not each 4 RTP streams which will confuse voipmonitor. Drawback of this switch is that voipmonitor will analyze SDP only for SIP packets which have the same IP and port of the first INVITE source IP and port. It means it will not work in case where phone sends INVITE from a.b.c.d:1024 and SIP proxy replies to a.b.c.d:5060. If you have better idea how to solve this problem better please contact support@voipmonitor.org
- Implement SIP register messages storing to PCAP and MySQL new table register. This feature is optional with --sip-register new switch and configuration option in voipmonitor.conf.
- implement native conversion to OGG vorbis audio, now you can choose if you want to record to wav or ogg. Ogg is about 25kbps. It can be configured in voipmonitor.conf or --audio-format =
- raise jitterbuffer for recording stream from 200 to 500 which improves dejittering audio
- Put write buffers for RAW and WAV files which solves IO throughput. Now it can convert wav files in realtime for 200 concurent calls on usual sata 2GB disk and ext4 fs. Before this change queue was filling by calls until it reached memory limit and voipmonitor crashed. But I'm not recommending writing WAV file in realtime as it uses a lot of RAM and can cause instability.
- Change core dump to unlimited
- change default maximum opened files from system default (usually 1024) to 65535 to not block writes for very large network traffic
- make core dump if voipmonitor crashes to voipmonitor directory
Bug fixes:
- fix memory leak and double CDR during wav recording
- fix crashes caused by bad fclose
- fix memory corruptions and race condition causing crashes
- Statistics from caller (a_*) was swapped to caller in some cases.
- Fix ab_received packet. It didnt correspond to what wireshark sees. It was always two packet less.
- Despite the documentation, the only the long form --pid-file was parsed. Add missing -P option.
- currently voipmonitor < 2.2 insists on IPv4 addresses on the sniffing interface. That's not necessary, often it's error prone. Furthermore the original code provided the IP address to the pcap library, but they expect the netmask. So the code was wrong and might be a cause for sporadic errors with filter compilation.
- ignore packets where datalen <0 (corrupted packets? just in case?)
- check if RTP packet is really RTP packet by checking RTP version bit which has to be equel 2. Without this check, some packets like STUN was confusing voipmonitor and graph file and raw file was created for each non RTP UDP packet which has the same SRC/DST port.
- calculation of packetization was wrong for G723 in case of 60ms which causes drops on WAV recording. Simplify and fix packetization.
- fix out of sync WAV recording in case where both RTP streams do not start at the same time (probably the most cases are for those who sends 200 OK immediately after 180 RINGING to simulate progress inband).
- Fix recording WAV and RAW rtp for calls with more than one reINVITEs. Name of files were not unique and some raw files overwrited previouse file so final file was not in sync and shuffled.
- Fix sync WAV issue for cases where RTP stream is not sending for a while before reINVITE.
- fix handling malloc and open files failures
- rise MAX_IP_PER_CALL to 30
Howto RUN
Capture all VoIP traffic on eth0, save pcap files to /var/spool/voipmonitor and store statistics to remote MySQL server:
voipmonitor -i eth0 -h remote.mysql.ip
Analyze all SIP VoIP calls in pcap file and store statistics to local MySQL server:
voipmonitor -r mypcapfile
Howto compile
What is required
This howto is for Debian 6.0 (squeeze)
apt-get install subversion libmysql++-dev libvorbis-dev libpcap-dev apache2 php5-mysql php5-gd cd /usr/src svn co https://voipmonitor.svn.sourceforge.net/svnroot/voipmonitor/trunk voipmonitor-svn cd voipmonitor-svn make clean make make install mkdir /var/spool/voipmonitor mysqladmin create voipmonitor cat cdrtable.sql | mysql voipmonitor cp config/voipmonitor.conf /etc/ #edit file /etc/voipmonitor.conf to your needs cp config/init.d/voipmonitor /etc/init.d/ update-rc.d voipmonitor defaults /etc/init.d/voipmonitor start
This howto is for Debian Lenny and Etch (for Debian sarge, change libmysqlclient15-dev to libmysqlclient14-dev)
apt-get install libmysqlclient15-dev
#(on redhat/CentOS it is mysql development package) wget http://tangentsoft.net/mysql++/releases/mysql++-3.0.9.tar.gz tar xzf mysql++-3.0.9.tar.gz cd mysql++-3.0.9 ./configure make install cd .. wget http://www.tcpdump.org/release/libpcap-1.1.1.tar.gz cd libpcap-1.1.1 ./configure make install ldconfig cd ../voipmonitor make install
mysqladmin create voipmonitor cat cdrtable.sql | mysql voipmonitor voipmonitor -i eth0 -SRG
